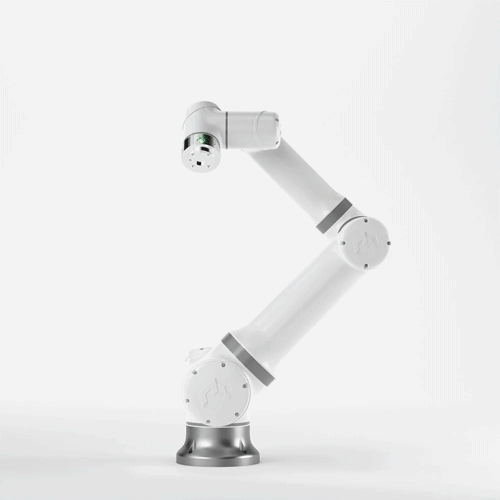

EC616 / 16kg 6-axis Collaborative Robot
WEIGHT
32.5kg
PAYLOAD
16kg
REACH
954mm
FOOTPRINT
∅150mm
ACCURACY
+/-0.03mm
Product Description
| Parameters | Value |
|---|---|
| ROBOT ARM | |
| footprint | ∅150mm |
| max_reach | 954mm |
| max_payload | 16kg |
| tool_side_io | 2 x DI, 2 x DO, 1 x 24V, 1 x AI, 1 x AO, 1 x RS485 |
| body_material | Aluminum Alloy |
| system_weight | 32.5kg |
| certifications | CE UL CR KCs RoHS |
| classification | IP54 |
| number_of_axis | 6 |
| tool_max_speed | 2.8m/s |
| power_consumption | 500W (Normal Working Conditions) |
| installation_method | Any Angle |
| length_of_the_cable | 5.5m |
| working_temperature | 0-50°C |
| robot_arm_power_supply | 48V |
| working_degrees_axis_1 | ±360° |
| working_degrees_axis_2 | ±360° |
| working_degrees_axis_3 | ±160° |
| working_degrees_axis_4 | ±360° |
| working_degrees_axis_5 | ±360° |
| working_degrees_axis_6 | ±360° |
| repeatability_precision | +/-0.03mm |
| Workingenvironment_humidity | |
| CONTROLLER | |
| ip_protection_class | ERB2E2K0-220/110, ERB2E2K0-48/24：IP44 |
| working_temperature | 0-50°C |
| control_cabinet_weight | 17Kg |
| communication_interface | 16 x DI, 20 x DO, 2 x AI, 4 x AO.Ethernet TCP/IP, UDP, ModbusTCP. RS485/RS232, ModbusRTU. Profinet (Slave)，EthernetIP (Slave)（Optional）,CCLink (Slave)（Optional） |
| controller_cabinet_size | ERB2E2K0-220/110：505*448*245mm ERB2E2K0-48/24：505*448*245mm |
| control_cabinet_power_supply | 220/110VAC(M:19-72VDC) |
| working_environment_humidity | 5% ~ 95%(No Condensation) |
| TEACH PENDANT | |
| size | 290 x 225 x118 |
| net_weight | 1.8Kg |
| resolution | 1280*800 |
| ip_protection_class | IP65 |
| length_of_the_cable | 5.5m |
| working_temperature | 0-50°C |
| working_environment_humidity | 5% ~ 95%(No Condensation) |
