EC66 / 6kg 6-axis Collaborative Robot

WEIGHT

17.5kg

PAYLOAD

6kg

REACH

914mm

FOOTPRINT

∅150mm

ACCURACY

+/-0.03mm

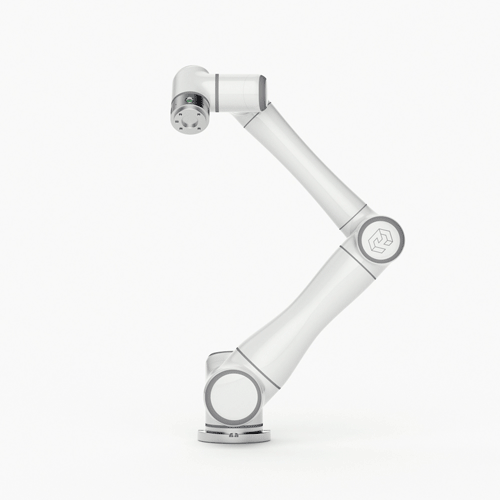

Learn about our EC66-Robot

The EC66 is a collaborative industrial robot that is lightweight and versatile, making it ideal for medium-payload applications. The EC66 is built to be easily integrated into a variety of applications. To shorten the ROI of the cobot solution launching, EC66 could be a competitive selection for a removable workstation.

Are you looking for the specifications of EC66-Robot ?

Find it here

Product Description

Parameters	Value
ROBOT ARM
footprint	∅150mm
max_reach	914mm
max_payload	6kg
tool_side_io	2 x DI, 2 x DO, 1 x 24V, 1 x AI, 1 x AO, 1 x RS485
body_material	Aluminum Alloy
system_weight	17.5kg
certifications	CE UL CR KCs RoHS
classification	IP54
number_of_axis	6
tool_max_speed	2.8m/s
power_consumption	250W (Normal Working Conditions)
installation_method	Any Angle
length_of_the_cable	5.5m
working_temperature	0-50°C
robot_arm_power_supply	48V
working_degrees_axis_1	±360°
working_degrees_axis_2	±360°
working_degrees_axis_3	±165°
working_degrees_axis_4	±360°
working_degrees_axis_5	±360°
working_degrees_axis_6	±360°
repeatability_precision	+/-0.03mm
Workingenvironment_humidity
CONTROLLER
ip_protection_class	ERB1K6-220/110, ERB1K0-48/24：IP20 ERB2E1K6-220/110, ERB2E1K0-48/24：IP44
working_temperature	0-50°C
control_cabinet_weight	15Kg
communication_interface	16 x DI, 20 x DO, 2 x AI, 4 x AO.Ethernet TCP/IP, UDP, ModbusTCP. RS485/RS232, ModbusRTU. Profinet (Slave)，EthernetIP (Slave)（Optional）,CCLink (Slave)（Optional）
controller_cabinet_size	ERB1K6-220/110：478380120mm ERB1K0-48/24：478380120mm ERB2E1K6-220/110：505448245mm ERB2E1K0-48/24：505448245mm
control_cabinet_power_supply	220/110VAC(M:19-72VDC)
working_environment_humidity	5% ~ 95%(No Condensation)
TEACH PENDANT
size	290 x 225 x118
net_weight	1.8Kg
resolution	1280*800
ip_protection_class	IP65
length_of_the_cable	5.5m
working_temperature	0-50°C
working_environment_humidity	5% ~ 95%(No Condensation)
