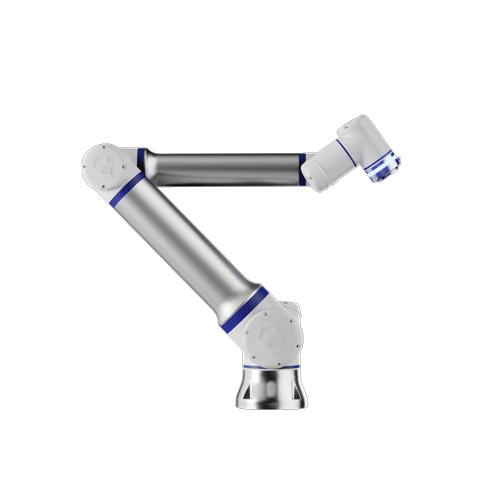

CS612 / 12kg 6-axis Collaborative Robot

WEIGHT

33kg

PAYLOAD

12kg

REACH

1304mm

FOOTPRINT

∅190mm

ACCURACY

±0.05mm

Learn about our CS612-Robot

With its large payload (12kg) and extended reach capability, the ELITE ROBOTS CS612 is an incredibly adaptable collaborative industrial robot arm. Its 1304mm reach allows it to cover a wide range of workspaces without sacrificing accuracy or payload performance. The CS612 is designed for a wide range of applications including machine tending, palletizing, packing, and mobility robotics systems integrated with AMR/ AGV. The CS612 is the most powerful robot in the ELITE ROBOTS series, capable of automating jobs weighing up to 12kg.

Are you looking for the specifications of CS612-Robot ?

Find it here

Product Description

Parameters	Value
ROBOT ARM
footprint	∅190mm
max_reach	1304mm
max_payload	12kg
tool_side_io	2 x DI, 2 x DO, 1 x AI, 1 x AO, 1 x RS485
body_material	Aluminium, plastic, steel
system_weight	33kg
certifications	CE/UL/CR/KCs/RoHS
classification	IP54
number_of_axis	6
tool_max_speed	3m/s
power_consumption	500w
installation_method	Any angle
length_of_the_cable	5m
working_temperature	0-50°C
robot_arm_power_supply	12/24V,2 x A(Dual pin),1 x A(Single pin)
working_degrees_axis_1	±360°
working_degrees_axis_2	±360°
working_degrees_axis_3	±360°
working_degrees_axis_4	±360°
working_degrees_axis_5	±360°
working_degrees_axis_6	±360°
repeatability_precision	±0.05mm
Workingenvironment_humidity	<90%(No Condensation)
CONTROLLER
ip_protection_class	IP44
working_temperature	0-50°C
control_cabinet_weight	14Kg
communication_interface	24 x DI(8 x DI Configurable), 24 x DO(8 x DOI Configurable),2 x AI,2 x AO; 3 x Ethernet, 1 x RS485, TCP/IP, MODBUS TCP/RTU, EtherNet/IP, Profinet
controller_cabinet_size	505mm432mm257mm
control_cabinet_power_supply	100-240 VAC, 50-60 Hz
working_environment_humidity	<90%(No Condensation)
TEACH PENDANT
size	12.1"
net_weight	2.1kg
resolution	1280 x 800 pixels
ip_protection_class	IP54
length_of_the_cable	5.5m
working_temperature	0-50°C
working_environment_humidity	<90%(No Condensation)
