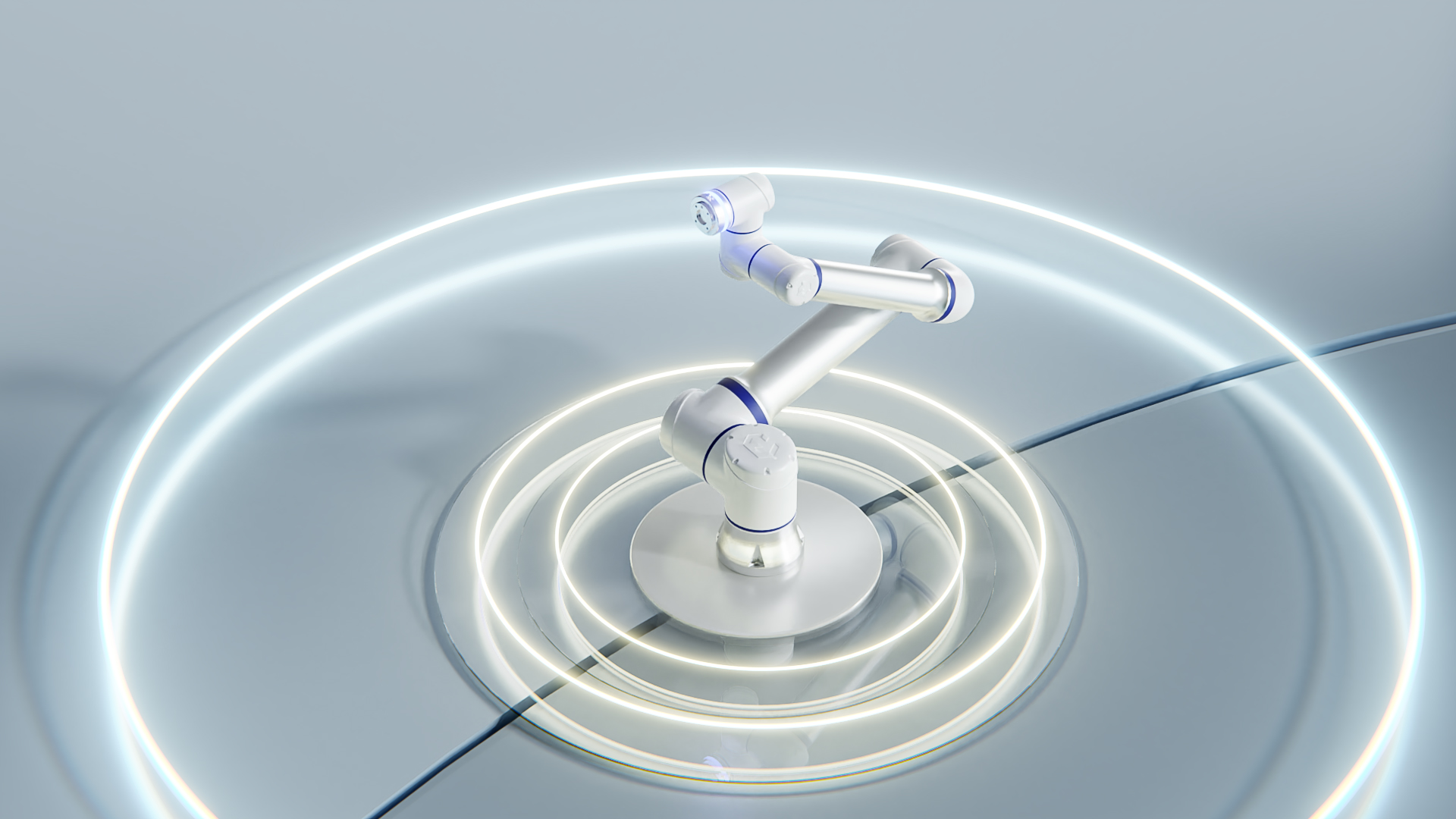

CS63 / 3kg 6-axis Collaborative Robot

WEIGHT

14kg

PAYLOAD

3kg

REACH

624mm

FOOTPRINT

∅128mm

ACCURACY

±0.03mm

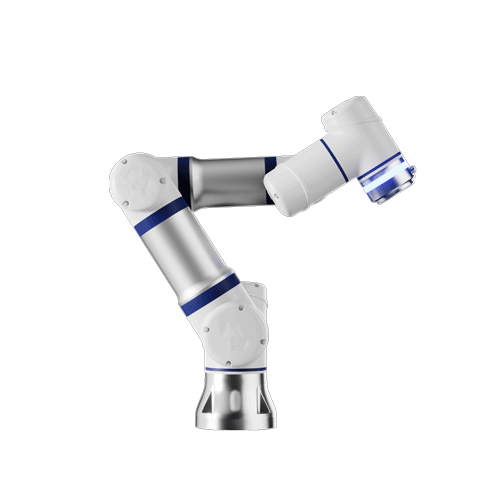

Learn about our CS63-Robot

The CS63 is small but strong, with a payload of 3kg and a reach radius of 624mm. This tabletop cobot executes high precision operations and light assembly duties with ease, thanks to ±360 degree rotation on all wrist joints. The ELITE ROBOTS CS63 is a table-top collaborative industrial robot that is ultra-lightweight and tiny. Its compact footprint allows it to be built directly into equipment or other confined areas. This cobot weighs only 16.5kg but carries a 3kg payload. Its adaptability and ease of programming make it ideal for light assembly, material transfer, and research applications.

Are you looking for the specifications of CS63-Robot ?

Find it here

Product Description

Parameters	Value
ROBOT ARM
footprint	∅128mm
max_reach	624mm
max_payload	3kg
tool_side_io	2 x DI, 2 x DO, 1 x AI, 1 x AO, 1 x RS485
body_material	Aluminium, plastic, steel
system_weight	14kg
certifications	CE/UL/CR/KCs/RoHS
classification	IP54
number_of_axis	6
tool_max_speed	2.0m/s
power_consumption	150w
installation_method	Any angle
length_of_the_cable	5m
working_temperature	0-50°C
robot_arm_power_supply	12/24V,2 x A(Dual pin),1 x A(Single pin)
working_degrees_axis_1	±360°
working_degrees_axis_2	±360°
working_degrees_axis_3	±360°
working_degrees_axis_4	±360°
working_degrees_axis_5	±360°
working_degrees_axis_6	±360°
repeatability_precision	±0.03mm
Workingenvironment_humidity	<90%(No Condensation)
CONTROLLER
ip_protection_class	IP44
working_temperature	0-50°C
control_cabinet_weight	14Kg
communication_interface	24 x DI(8 x DI Configurable), 24 x DO(8 x DOI Configurable),2 x AI,2 x AO; 3 x Ethernet, 1 x RS485, TCP/IP, MODBUS TCP/RTU, EtherNet/IP, Profinet
controller_cabinet_size	505mm432mm257mm
control_cabinet_power_supply	100-240 VAC, 50-60 Hz
working_environment_humidity	<90%(No Condensation)
TEACH PENDANT
size	12.1"
net_weight	2.1kg
resolution	1280 x 800 pixels
ip_protection_class	IP54
length_of_the_cable	5.5m
working_temperature	0-50°C
working_environment_humidity	<90%(No Condensation)
